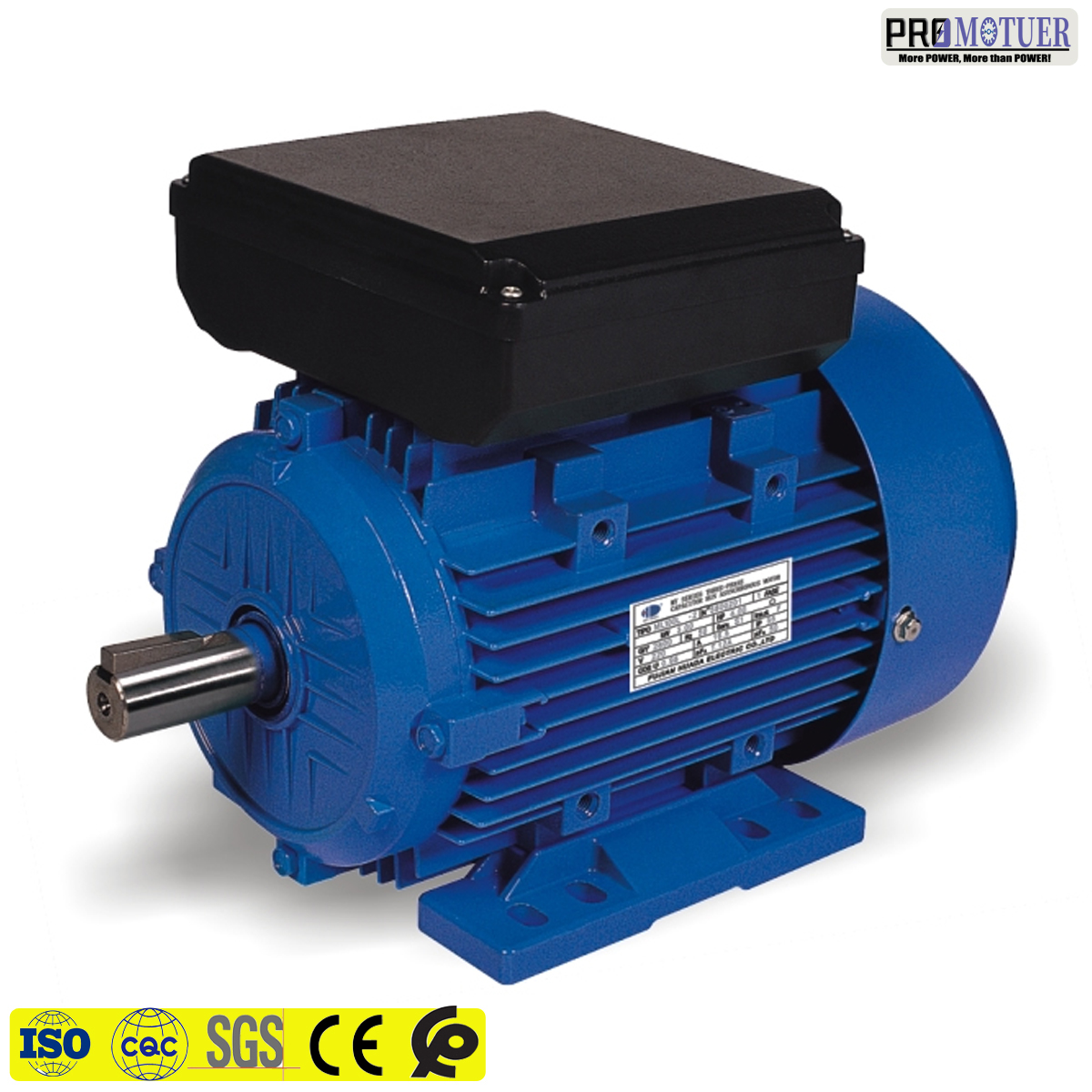

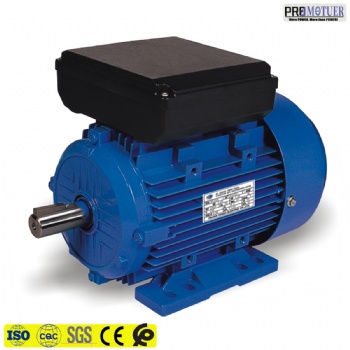

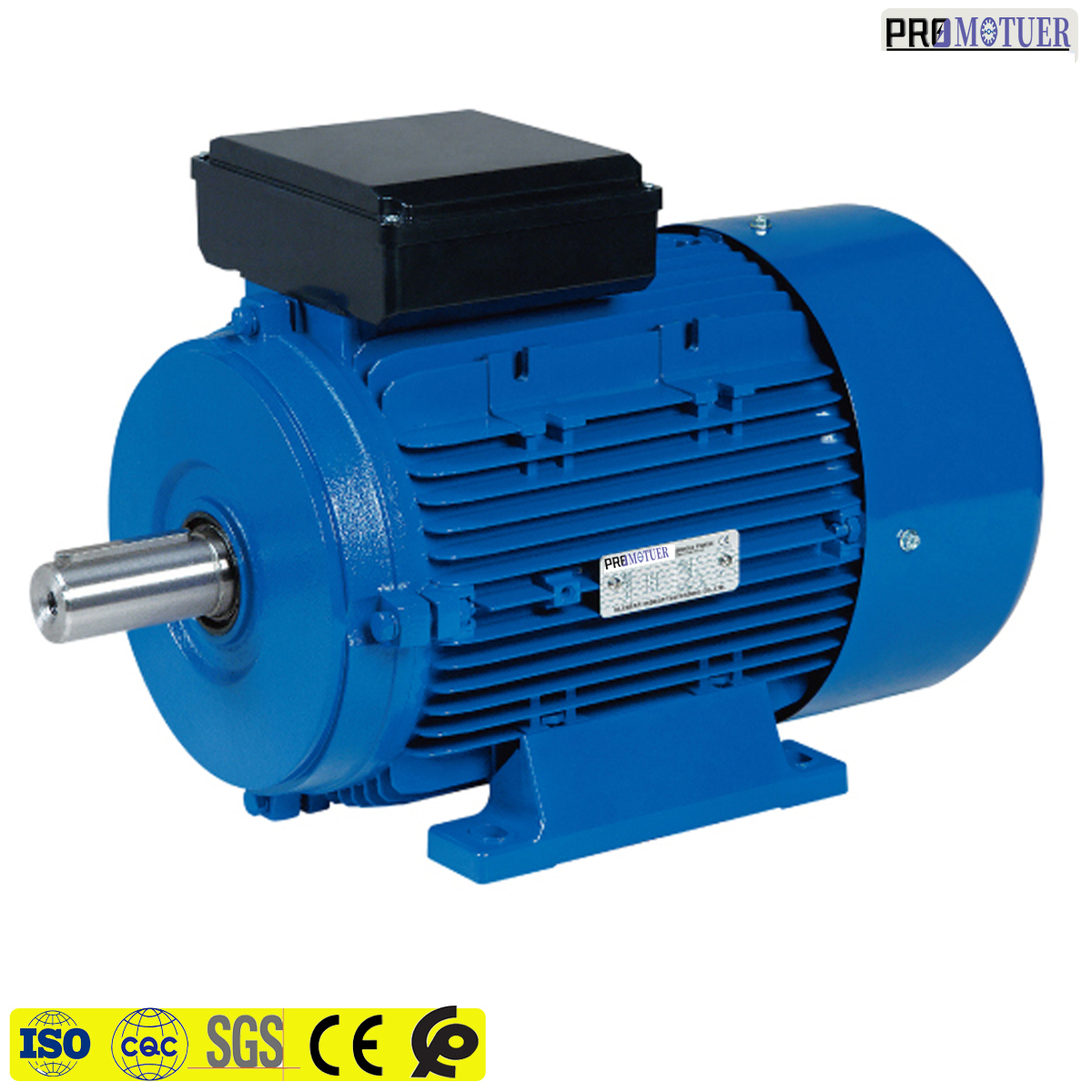

ML series two-value capacitor asynchronous motor

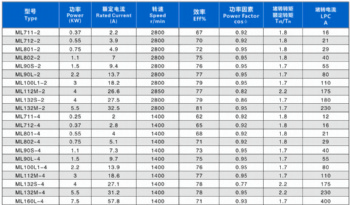

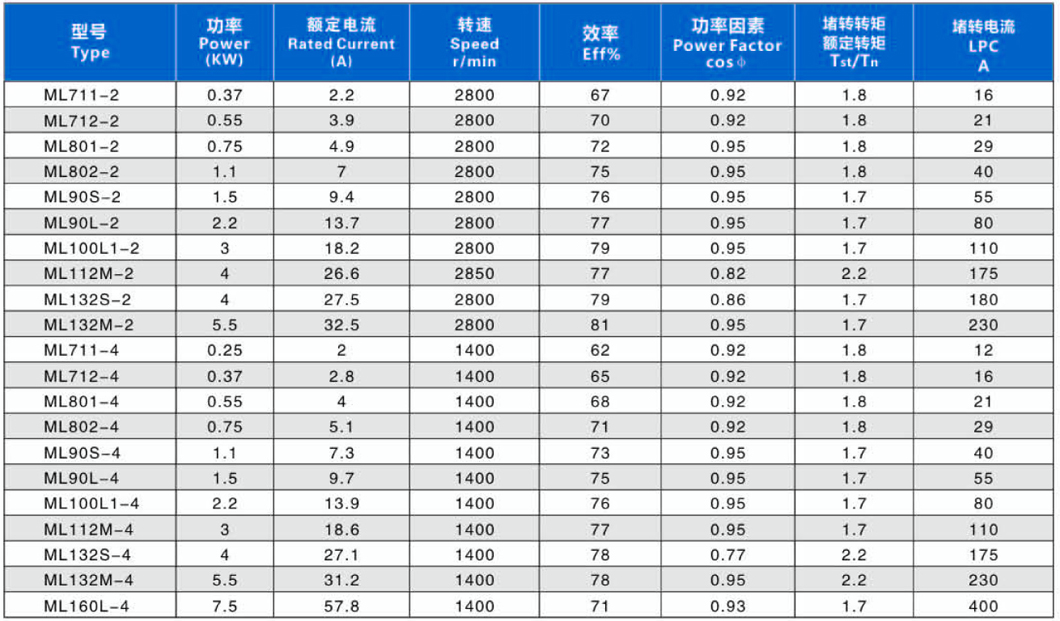

Parameter:

• Frame: 71-112mm.

• Power: 0.25-4KW.

• With starting and running capacitor

• Aluminum housing


• Protection class: IP44

• Insulation class: F

• Mounting type: Foot mount(B3), B5, B35, B14, B34.

• Cooling method: IC411

Application: Air compressors, pumps, fans, coolers, medical equipment and small machines etc.

Feature: Aluminum housing, smooth appearance, low weight, large starting torque. high overload capacity, low temperature rise. low noise, energy saving.

Working condition: The altitude not exceeding 1000m above sea level. the ambient temperature subject to seasonal variations but not exceeding +40℃ and not less than -15℃.
